Duraform Concrete Form Hardware

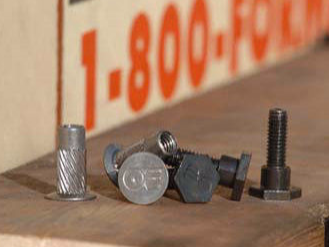

HEX BOLT and SLEEVE NUT

Used in combination to attach hardware or as field
replacement hardware to high density overlaid plywood
forms.

SPREADER CLIPS

Replaces the need for ties and loose clips when laying
forms on their sides for 2' and 6' high walls.

HARD LATCH

Used to secure DURAFORM panels together or to secure
panels to corners in the desired configuration. DURAFORM® Boron Panel Latch is one of the hardest latches manufactured, insuring strength and durability.

CORNER CLIP

Made of hardened steel, these clips are used to attach 4
and 5 filler panels to adjacent full size panels or fillers.

HALF CLIP

Constructed of hardened steel, half clips have a single tie
slot to secure tie position when the attached latch hardware cannot be used.

STACKING PLATE

Allows for placement of ties at the top of forms. Nail stacked panels to prevent lift. Allows additional ties in the wall for supplemental strength.

BREAKOFF TOOL

Break off tie ends, releasing pressure on latch to start stripping the forms. Lifetime Warranty! Available in Economy style.

TURNBUCKLE

Adjusts alignment accurately and quickly. Rolled threads assure ease of operation event when the forms are full.
6" Take Up. Constructed of heavy steel. 10' Turnbuckle Wall Brace available - same DURAFORM Turnbuckle assembly with steel piping attached to provide an all inclusive product.

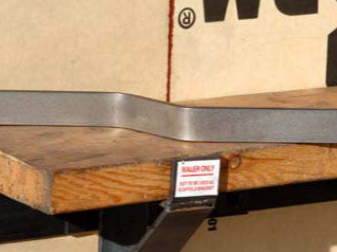

SCAFFOLD BRACKET

A DURAFORM exclusive! A true scaffold bracket that fits
properly on any DURAFORM or compatible 4-Bar, 5-Bar
or 6-Bar system. Allows construction of proper hand rail and toe board with 20” in. walk space for your workers safety.
Tube brace back to the form for rigidity. Tested and satisfies OSHA and ANS standards covering scaffolding safety and rated HEAVY DUTY by their definitions. Testing exceeded requirements for maximum loading of 1,190lbs. We recommend spacing brackets on six foot centers. Make Safety a Habit.

OFFSET CLIP

Connects forms on stepdown. Holds tie in place, nails
flush to next form.

2" OFFSET FILLER

Matches with 8" filler to transition a straight wall by 2 in.
Transition from 12 to 10 or 10 to 8 or any dimension that's
needed.

STACKING TIE & WEDGE

Thicker tie for stacking with 4 Bar system. Available for 8,10 or 12 ft. walls (100 pcs per box). Reusable wedges (50 pcs per box).
